Cardio Line | SKOR Upright Bike

Cardio | Workout space 3m²
ART0002323

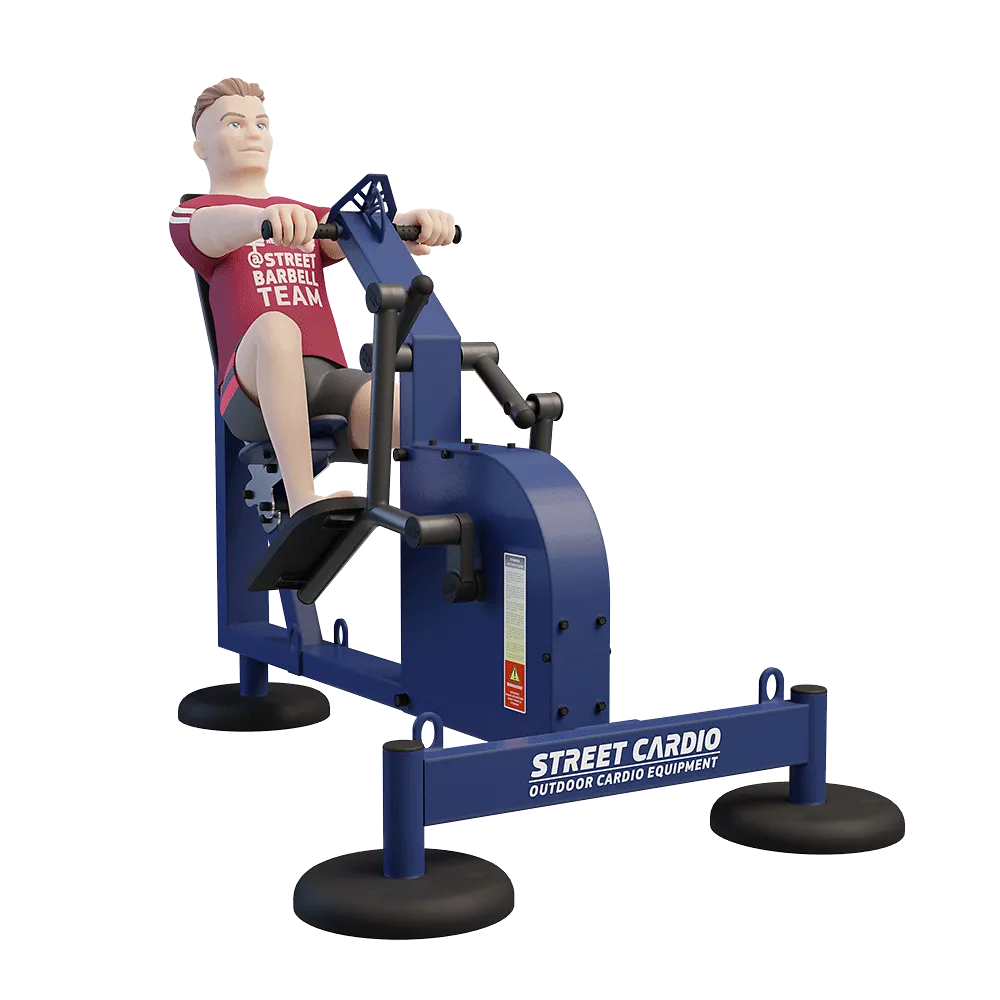

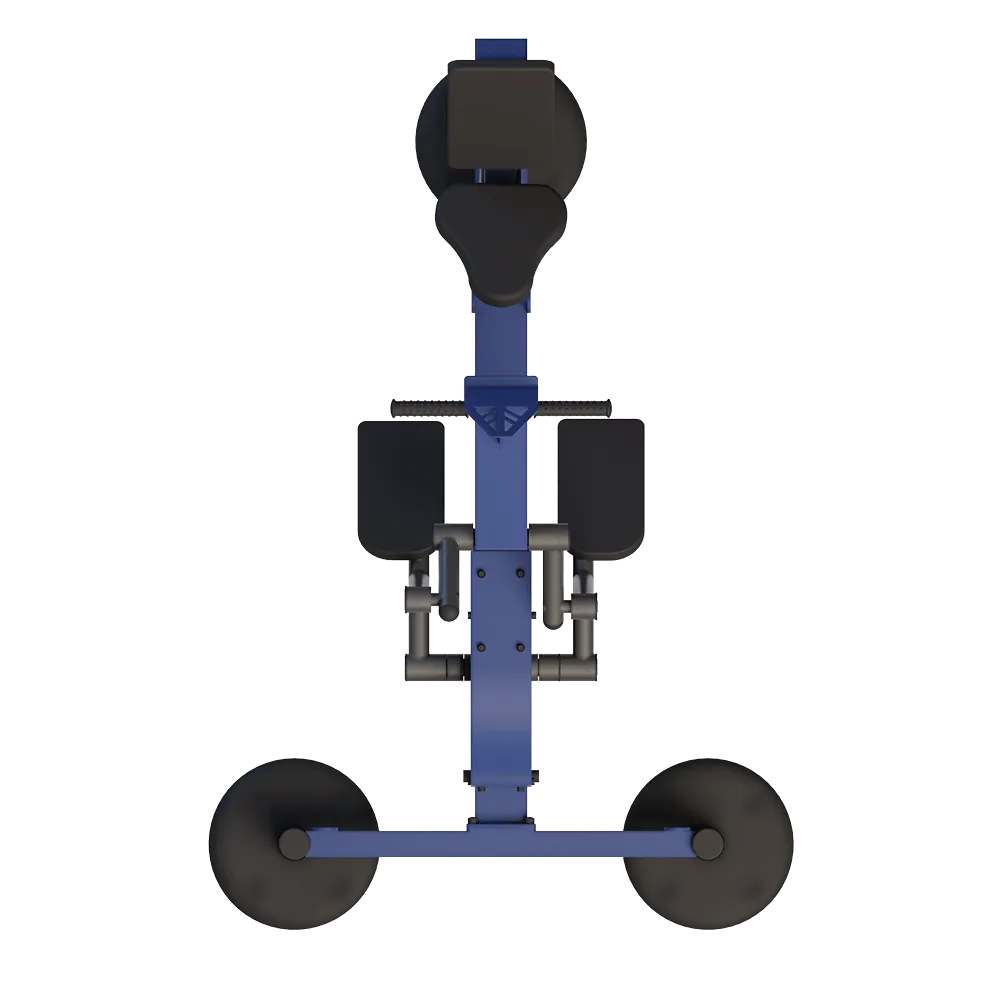

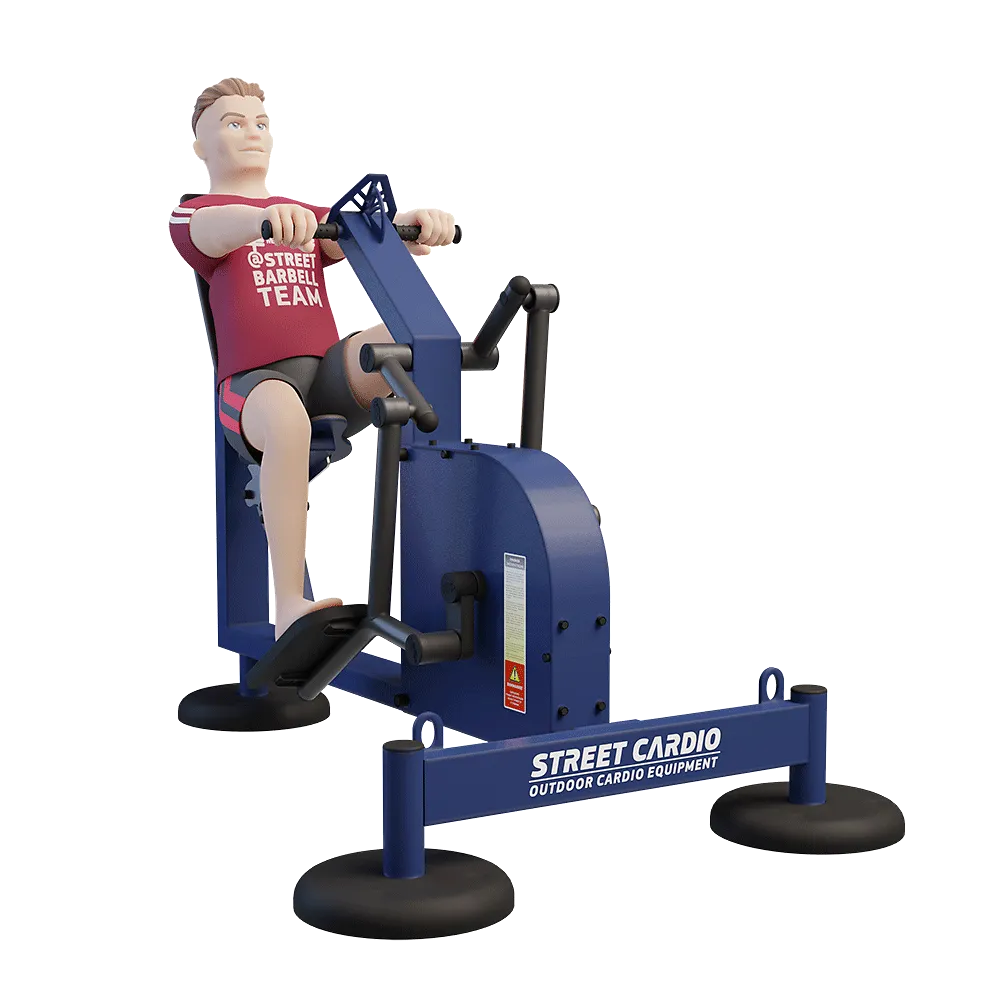

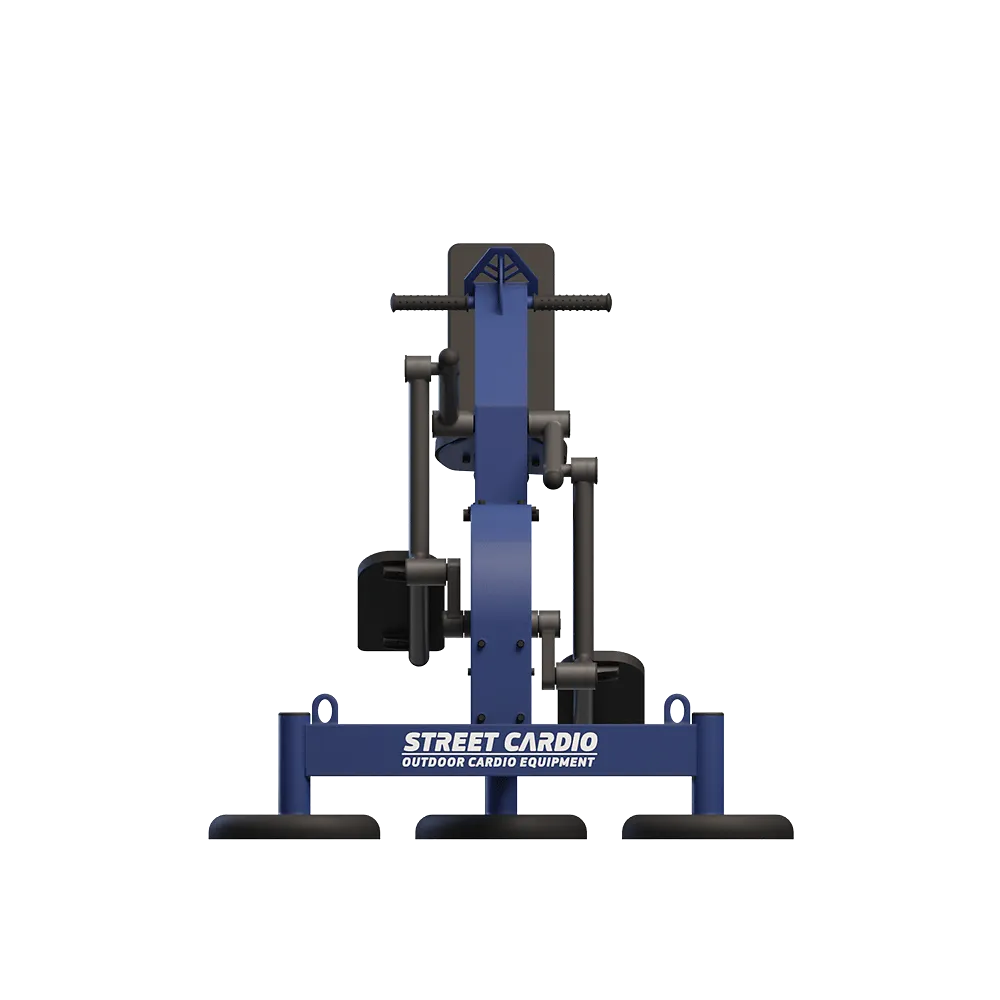

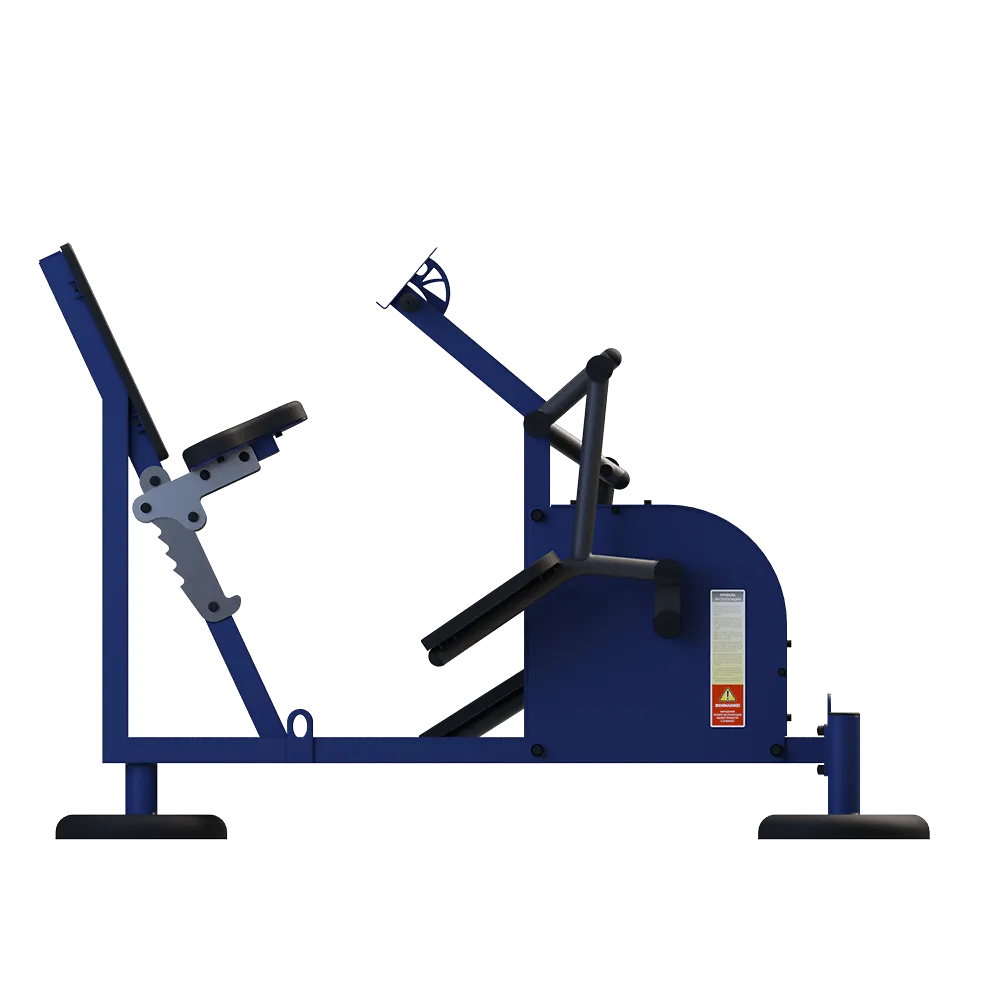

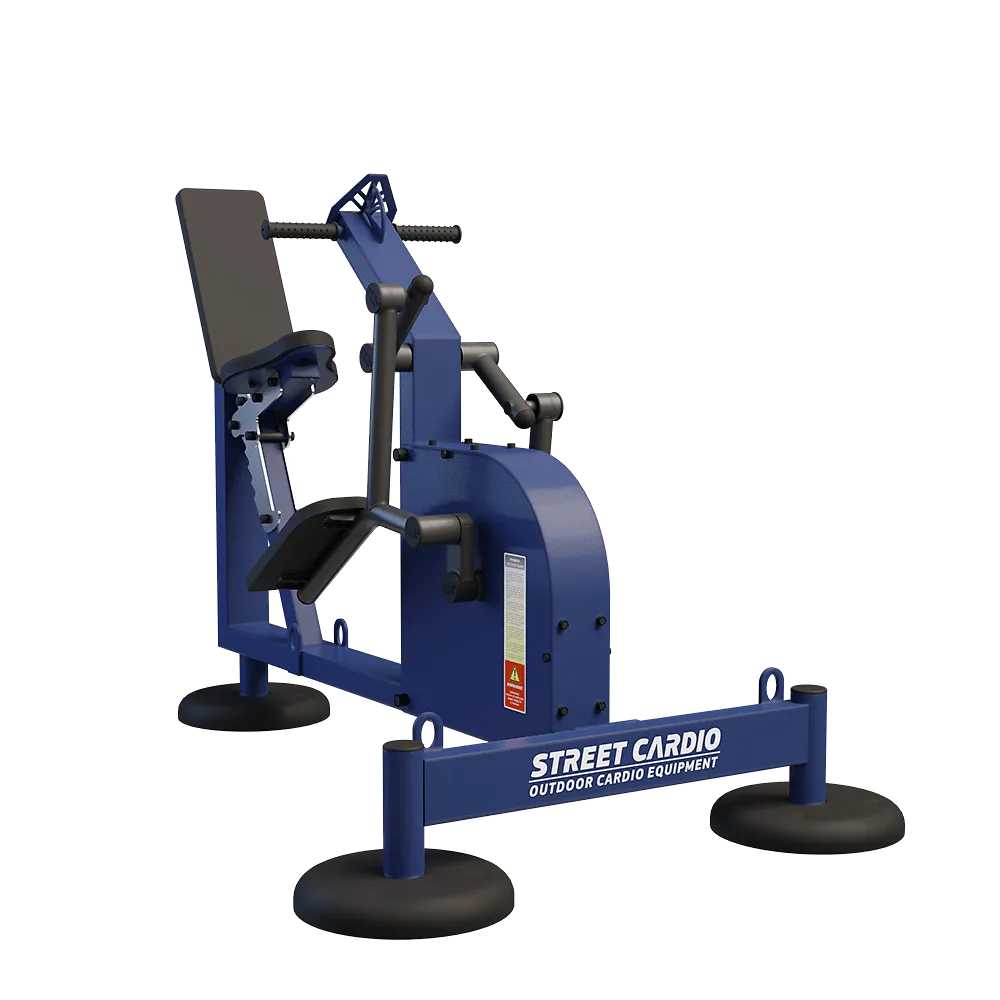

The Upright Bike from the Cardio Line is a robust outdoor fitness device for intensive, seated cardio training in outdoor spaces. With an adjustable resistance system of 10 to 30 kg, an adjustable seat, and a sturdy steel construction with zinc primer and powder coating, the device is designed for effective leg training and long-term use at professional outdoor sports facilities.

The Upright Bike from the Cardio Line is a robust outdoor fitness device for intensive, seated cardio training in outdoor spaces. With an adjustable resistance system of 10 to 30 kg, an adjustable seat, and a sturdy steel construction with zinc primer and powder coating, the device is designed for effective leg training and long-term use at professional outdoor sports facilities.

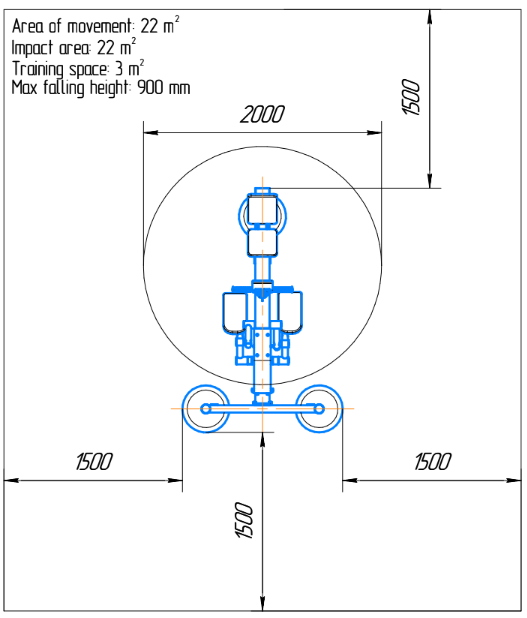

  • Dimensions: 2070 x 1350 x 1390 mm.
  • Frame weight: 160 kg.
  • Available space: 22m².
  • Designed for seated cardiovascular training with active leg loading.
  • Exercise: cycling.
  • Equipped with an innovative non-inertial loading mechanism for effective muscle activation during the pedaling motion.
  • Adjustable resistance: 10 kg / 15 kg / 20 kg / 25 kg / 30 kg.
  • Load-bearing structure made from a 120 x 60 mm profile with a wall thickness of 3 mm.
  • Frame coating consists of 2 layers for protection against impact and weather: zinc primer and powder coating.
  • Standard color scheme: blue with black (other colors possible).
  • Seat and backrest made from 12 mm laminated plywood.
  • Seat adjustable for optimal adaptation to the user's body length.
  • Pedals made of PVC for comfortable use.
  • Ends of round tubes fitted with PVC end caps to prevent injuries.
  • Maintenance-free, sealed bearings used at pivot points.
  • Construction designed for maximum stability and tilt safety, suitable for freestanding placement.
  • Equipped with transport loops for placement with a crane.
  • Can be anchored to concrete with M16x125 anchor bolts.
  • Equipped with rubber protective pads at the base to cover protruding anchor parts.
  • Part of the Cardio Line.

The Upright Bike from the Cardio Line offers a durable and reliable solution for outdoor sports facilities where safe and effective cardio training is paramount.
