Light Line | SKOR Assisted Pull Ups + Triceps Dips

• Dimensions: 2646 x 1750 x 2350 mm.
• Total unit weight: 355 kg.
• Frame weight: 206 kg.

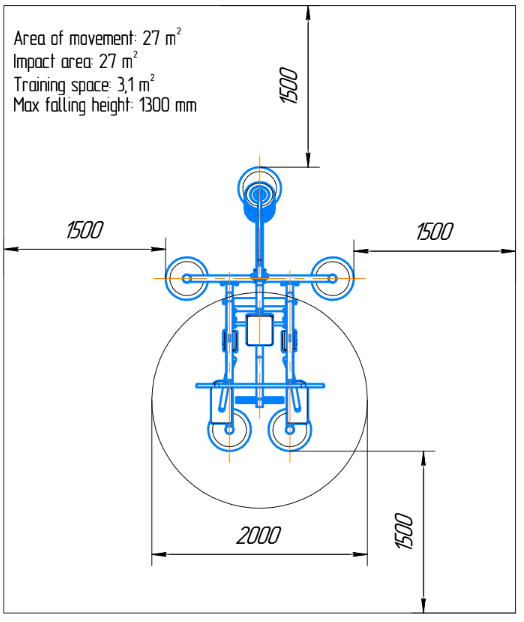

• Available space: 27m²
• Multifunctional strength machine designed for training shoulders (deltoids), chest muscles, triceps, biceps, abdominal and back muscles.
• Exercises: pull-ups with wide and neutral grip, dips on parallel bars, and leg raises.
• Load-bearing structure made of a 120 x 60 mm profile (wall thickness 3 mm) and tubes with a diameter of 74 mm (wall thickness 6 mm).
• Frame coating consists of 2 layers for protection against impact and weather influences: zinc primer and powder coating.
• Adjustable counterweight load via guide rails.

• Counterweight configuration:

  • 8 plates of 10 kg (80 kg total).

• Steel counterweight discs with rubber coating and a 50 mm mounting hole.
• Standard colour scheme: blue with black (other colours possible).
• Ends of the rectangular profile fitted with PVC end caps to prevent injuries.
• Ends of round tubes fitted with PVC end caps to prevent injuries.
• 60 mm thick rubber bumpers reduce noise and impact during use.
• Backrest made of 12 mm laminated plywood.
• Steps, elbow rests, and lever rests made of polyurethane and 15 mm five-ply plywood for extra rigidity.
• Maintenance-free, sealed bearings used at pivot points.
• Construction designed to prevent tipping and suitable for freestanding placement without mandatory anchoring.
• Equipped with transport loops for crane placement.
• Includes M16x125 anchor bolts for mounting on concrete or securing in the ground with special ground pegs.
• Supplied with rubber covers for the attachment points.

• Part of the Light Line.

The Assisted Combined Exerciser from the Light Line is a durable and reliable solution for outdoor sports locations where accessible and versatile full-body training is central.
