Light Line | SKOR Squat Platform

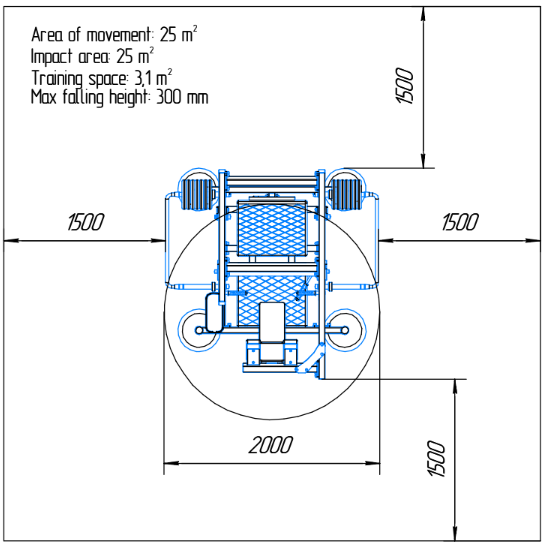

• Dimensions: 1960 x 1980 x 1880 mm.
• Total weight of apparatus: 440 kg.
• Available space: 25m²
• Designed for targeted development of leg muscles.
• Exercise: hack squat.

• Weight configuration:

  • 14 discs of 10 kg (140 kg total).

• Load-bearing construction made from a 120 x 60 mm profile with a wall thickness of 3 mm.
• Frame coating consists of 2 layers for protection against impact and weathering: zinc primer and powder coating.
• Standard colour scheme: blue with black.
• Adjustable resistance via guided weight plates.
• "Standard" type weight plates, made of solid steel and provided with a rubber coating.
• Equipped with PVC handles for extra grip and stability during exercise.
• Ends of rectangular profiles fully welded shut to prevent injuries.
• Maintenance-free bearings used at pivot points.
• Leg and hip rollers made of PU damping material.
• Foot platforms made of plywood and PU damping material with anti-slip relief.
• Shoulder supports fitted with anatomically shaped PU cushion on plywood base.
• Includes 12 M16x125 anchor bolts for mounting on concrete or securing into the ground.
• Equipped with rubber protection pads at the base to cover protruding anchor parts.
• Construction designed for maximum stability and tilt safety, suitable for freestanding placement.
• Equipped with integrated start and safety system for controlled use.
• Transport loops available for placement with a crane.

• Part of the Light Line.

The Squat Platform from the Light Line offers a durable and reliable solution for outdoor sports locations where powerful and controlled leg training is central.
