Pitch gripper M15

Mineral Infill | Football
ART0002185

The Pitch Gripper M15 has been developed with circularity as a core principle. The system consists of 80% recycled aluminum and is 100% recyclable at the end of its life cycle. By using high-quality aluminum, the material can be reused again and again without loss of quality.

The Pitch Gripper M15 has been developed with circularity as a core principle. The system consists of 80% recycled aluminum and is 100% recyclable at the end of its life cycle. By using high-quality aluminum, the material can be reused again and again without loss of quality.

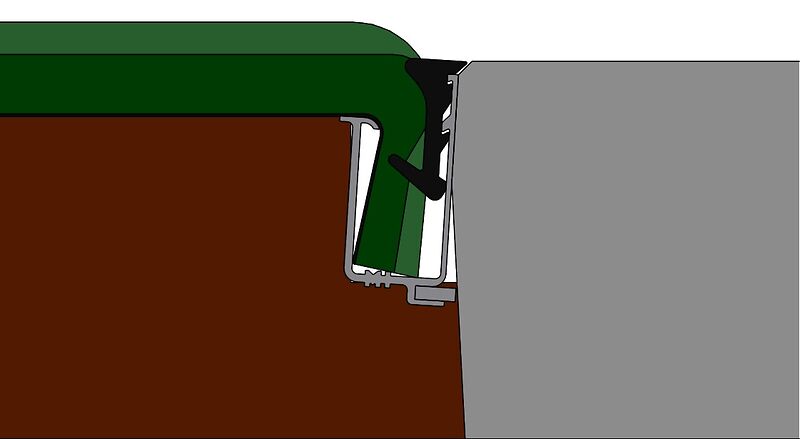

  • Clamping system consisting of an aluminum clamping profile type Pitch Gripper M15 for the durable and secure fixation of artificial turf.
  • Aluminum profile with dimensions 86 × 43 mm.
  • Radius of 6 mm over which the artificial grass turns into the profile for a controlled and neat finish.
  • Clamping edge with 7 mm overhang and 0.2 mm radius for reliable securing.
  • Height difference in the gutter: 18 mm.
  • Recommended installation height: top of the profile 5 mm below the paving.
  • Opening in the profile: 26 mm.
  • Installation depth 58 mm for artificial grass overhang.
  • Supplied in lengths of 6 meters.
  • Standard mounting holes every 1 meter.
  • Drill holes positioned 32 mm from the top of the profile.
  • Artificial grass to be clamped with clamping rubber; both profile and rubber equipped with double locking hook.
  • Top of the rubber connects seamlessly to the paving and has a 5 mm chamfered edge at 45°.
  • Stress-free mounting with stainless steel A4 concrete screw 6 × 50 mm.
