Pro Line | SKOR Horizontal Pull

Back |
ART0002333

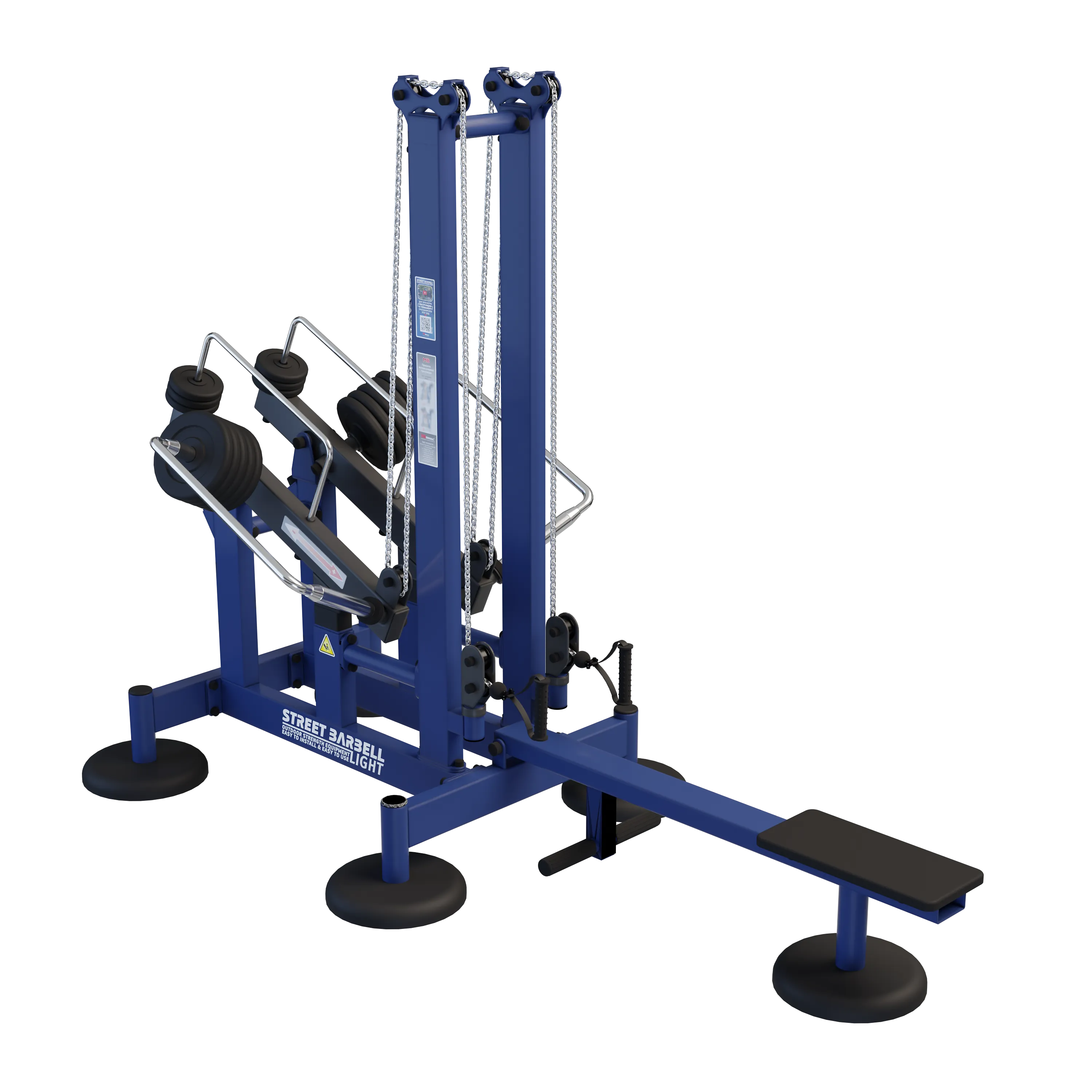

The Horizontal Pull is a robust outdoor fitness machine designed for targeted training of the back muscles through a horizontal pulling movement. With an adjustable resistance system of 155 kg and a sturdy steel construction with zinc primer and powder coating, the machine is designed for effective back training and long-term use in professional outdoor areas.

The Horizontal Pull is a robust outdoor fitness machine designed for targeted training of the back muscles through a horizontal pulling movement. With an adjustable resistance system of 155 kg and a sturdy steel construction with zinc primer and powder coating, the machine is designed for effective back training and long-term use in professional outdoor areas.
  • Developed for back muscle training

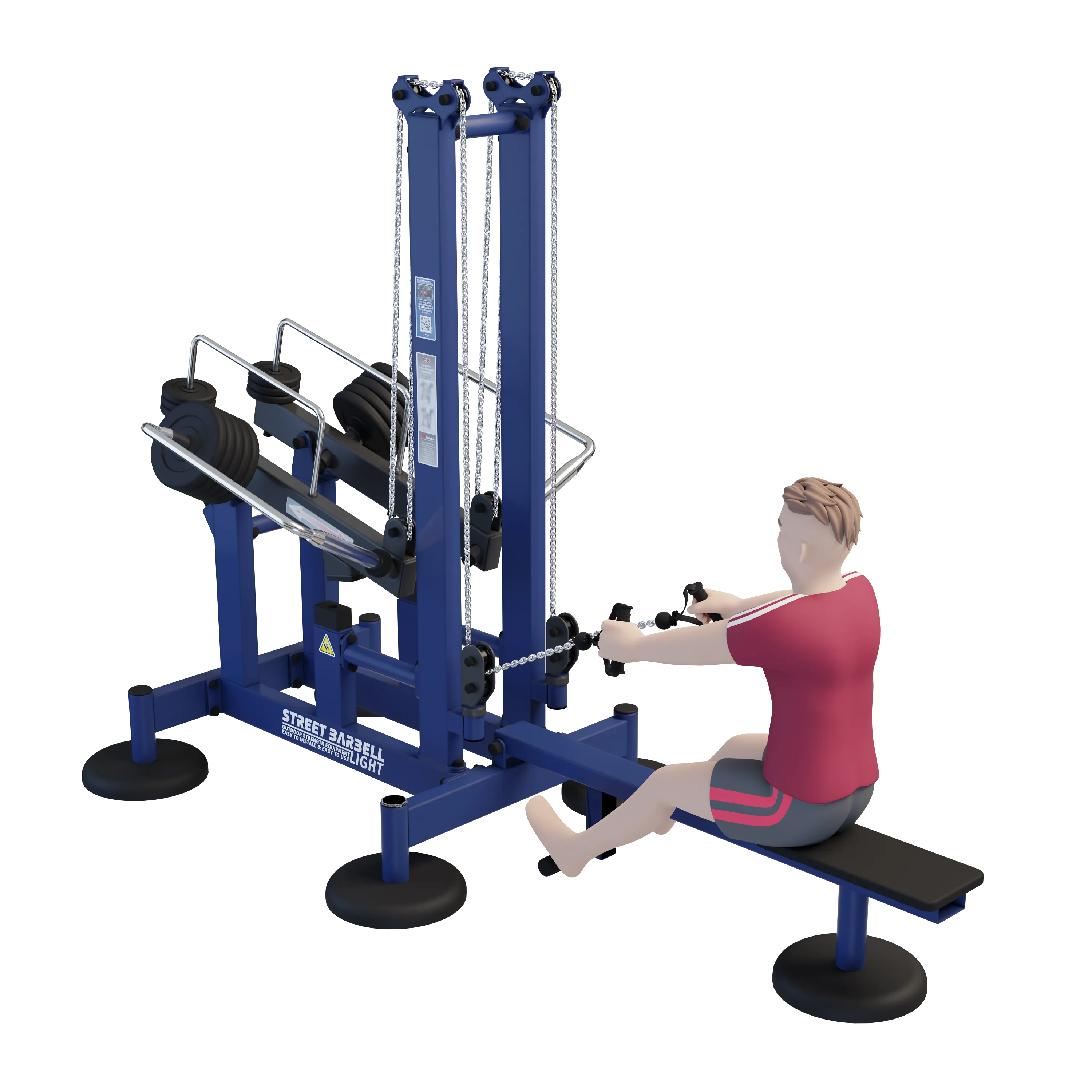

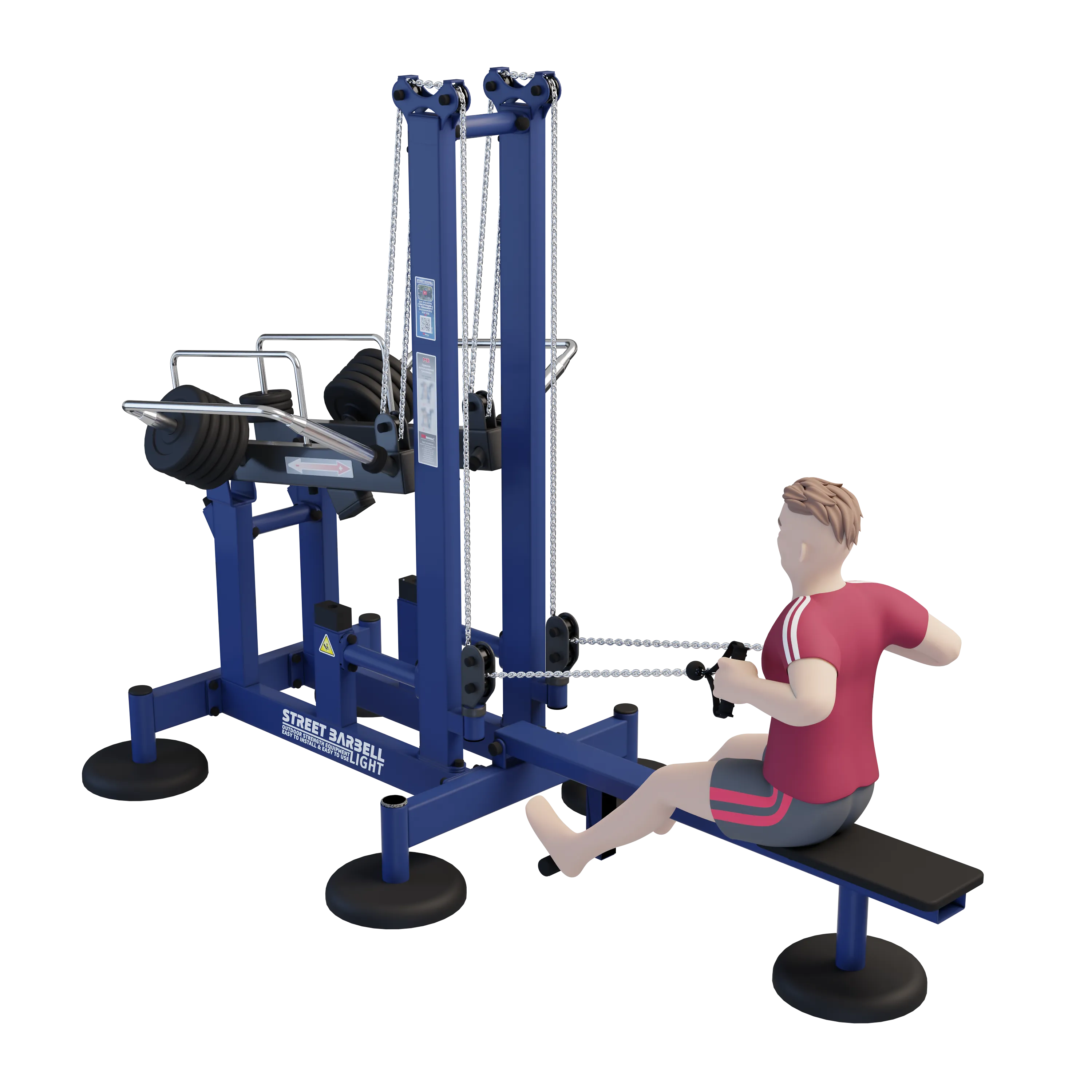

  • Exercise: horizontal pulling motion
  • Dimensions (LxWxH): 2920 x 1390 x 2220 mm
  • Total weight: 380 kg
  • Freestanding and tilt-resistant design

  • Installation possible without mandatory floor anchoring

Weight System

  • 14 weight plates of 10 kg (140 kg)
  • 6 weight plates of 2.5 kg (15 kg)
  • Total plate set: 155 kg
  • Steel weight plates with rubber coating
  • "Standard" plates with 50 mm bore

  • Resistance adjustable via guide rail

Construction

  • Load-bearing structure from 120x60 mm steel profile
  • Steel wall thickness: 3 mm
  • Maintenance-free, sealed bearings at pivot points
  • Rectangular profile ends fully welded shut

  • PVC end caps on round tube ends

Coating and finish

  • Two-layer surface treatment:

    • Zinc primer

    • Abrasion-resistant powder coating

  • Resistant to impact and atmospheric influences

  • Standard color: blue with black

Safety

  • Rubber protective pads under the leg bases

Assembly and placement

  • Transport loops for crane placement
  • Anchoring possible with M16x125 anchor bolts

  • Alternatively: fastening with special ground nails
